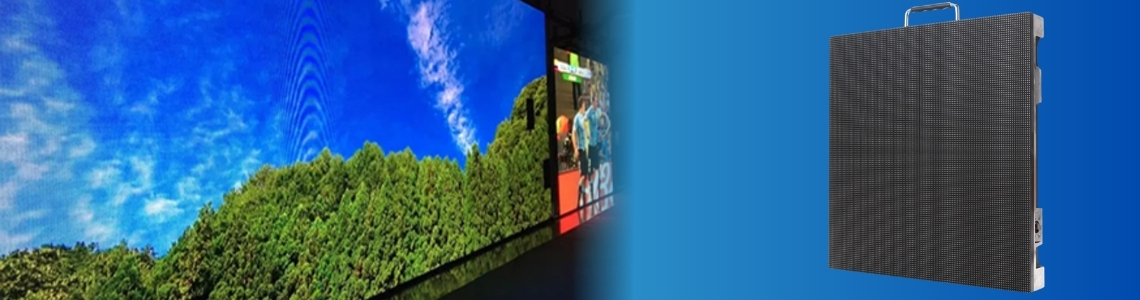

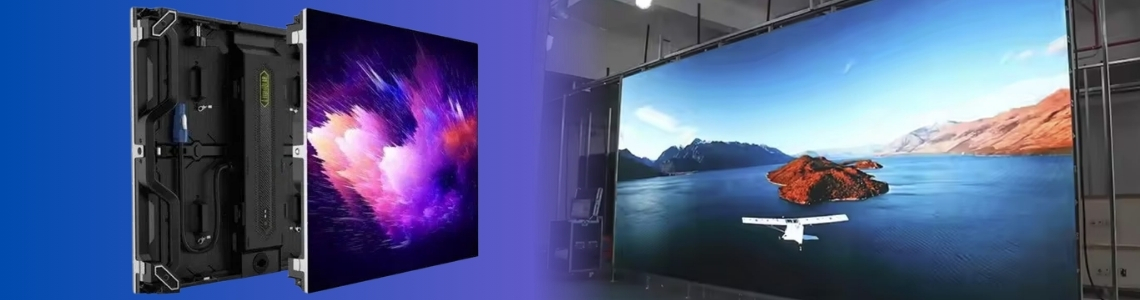

P2 LED Wall

Equipment P2 LED Wall

P2 is latest version in India in LED wall best for high definition presentation and product display.

We provide p2 LED wall on rental basis.

Key Specifications/Special Features:


Module specifications:



  1. Pixel pitch: 2mm
  2. Pixel density: 250,000pixels/m²
  3. Pixel configuration: 1R1G1B
  4. Pixel quantities: 120 dots * 60 dots
  5. Module size: 240* 120mm

Cabinet specifications:

  1. Resolution: 240 * 240 pixels
  2. Dimensions: 480 * 480mm
  3. Cabinet material: iron/aluminum/die casting is optional
  4. IP rating: IP65

Screen specifications:



  1. White balance brightness: 1000cd/sq.m
  2. Encapsulation mode: 3-in-1
  3. LED encapsulation type: SMD1010
  4. Scanning method: 1/30 scanning
  5. Driving method: constant current
  6. Best viewing distance: >1m
  7. Power consumption: <250W/m² average/750W/m² maximum
  8. View angle (H/V): ≥140°/≥140°
  9. Input voltage: 220V AC/50Hz or 110V AC/60Hz
  10. Frame frequency: 60Hz
  11. Refresh frequency: ≥3000Hz
  12. Brightness control: manual 256 level and auto, 8 levels
  13. Dot defects rate: ≤0.0002
  14. Lifespan: <100,000 hours
  15. MTBF: >50,000 hours
Operating temperature and RH: -40 to 65℃/20%-90% RH
Storage temperature and RH: -45 to 85℃/10%-95%RH
Heat dissipation type: built-in fans
Input signal: RF, S-Video, RGB, RGBHV, YUV, YC, composition
Certifications: CCC, CE, FCC, UL
RoHS Directive-compliant
