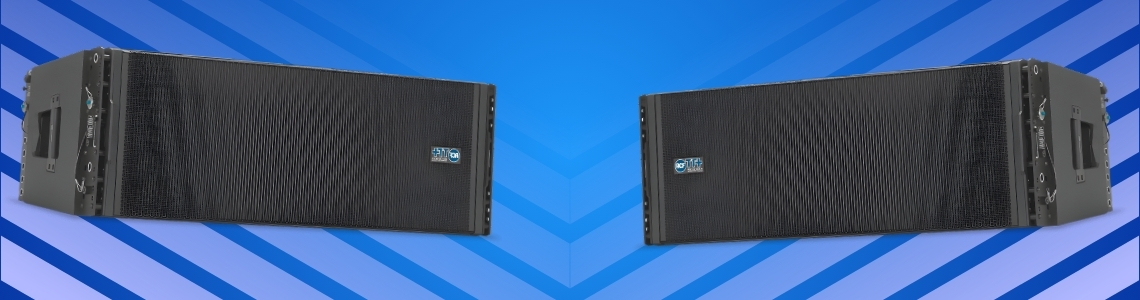

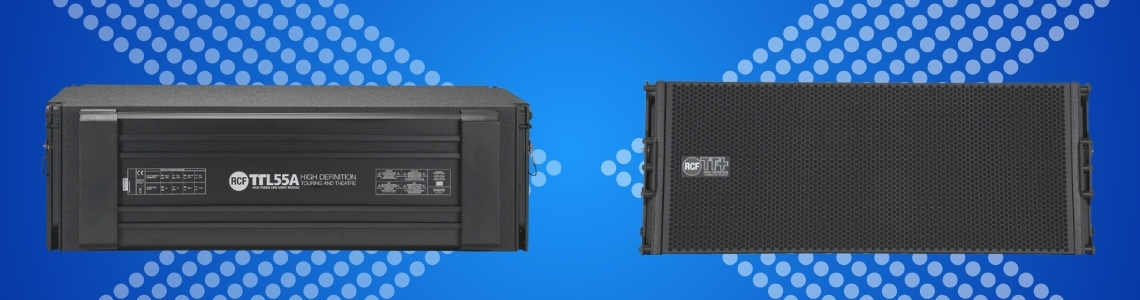

RCF TTL 55-A

Equipment RCF TTL 55-A

Features-

  • Tour grade cabinet and mechanics
  • 3500 Watt, 4 way amplification
  • 6 x high power neodymium transducers
  • High quality analog input board
  • 96 kHz, 32 bit DSP processing
  • Remote monitoring and control
  • Maximum output per size on the market
  • RDNet on board



Specifications -



Acoustical specifications  -

  • FREQUENCY RESPONSE: 50 Hz ÷ 20000 Hz
  •  MAX SPL @ 1M: 143 dB
  •  HORIZONTAL COVERAGE ANGLE: 90°
  •  VERTICAL COVERAGE ANGLE: 7°




Transducers



  • COMPRESSION DRIVER: 3 x 1.5'' neo, 2.5'' v.c
  • MIDRANGE: 10'' neo, 3.5'' v.c
  • WOOFER: 2 x 12'' neo, 4.0'' v.c



Input/Output Section -



  • INPUT SIGNAL: bal/unbal
  • INPUT CONNECTORS: XLR, RDNet Ethercon
  • OUTPUT CONNECTORS: XLR, RDNet Ethercon
  • INPUT SENSITIVITY: +4 dBu


Processor section -



  • CROSSOVER FREQUENCIES: 320 Hz - 1300 Hz
  •  PROTECTIONS: Thermal, Excurs., RMS
  •  LIMITER: Soft Limiter
  •  CONTROLS: DSP controlled
  •  RDNET: Yes


Power Section -



  • TOTAL POWER: 7000 W Peak, 3500 W RMS
  •  HIGH FREQUENCIES: 1000 W Peak, 500 W RMS
  •  MID FREQUENCIES: 2000 W Peak, 1000 W RMS
  •  LOW FREQUENCIES: 4000 W Peak, 2000 W RMS
  •  COOLING: Convection/Forced
  •  CONNECTIONS: Powercon IN/OUT

Standard compliance

  • CE MARKING: Yes

Physical specifications

  • CABINET/CASE MATERIAL: Baltic birch plywood

  •  HARDWARE: Array Fly - Ware

  •  HANDLES: 2 Side
  •  GRILLE: Steel
  •  COLOR: Black



Size-

  • HEIGHT:380 mm / 14.96 inches
  •  WIDTH: 1020 mm / 40.16 inches
  •  DEPTH: 550 mm / 21.65 inches
  •  WEIGHT:70.5 kg / 155.43 lbs



Shipping Informations


  • PACKAGE HEIGHT: 909 mm / 35.79 inches
  • PACKAGE WIDTH: 1144 mm / 45.04 inches
  • PACKAGE DEPTH: 499 mm / 19.65 inches
  • PACKAGE WEIGHT: 81 kg / 178.57 lbs
