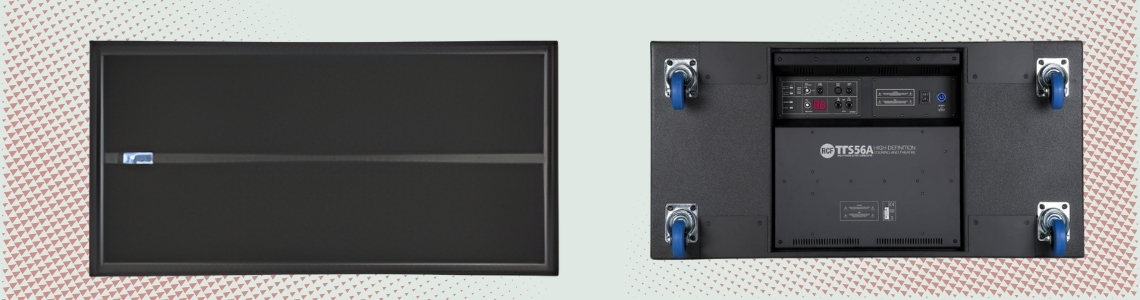

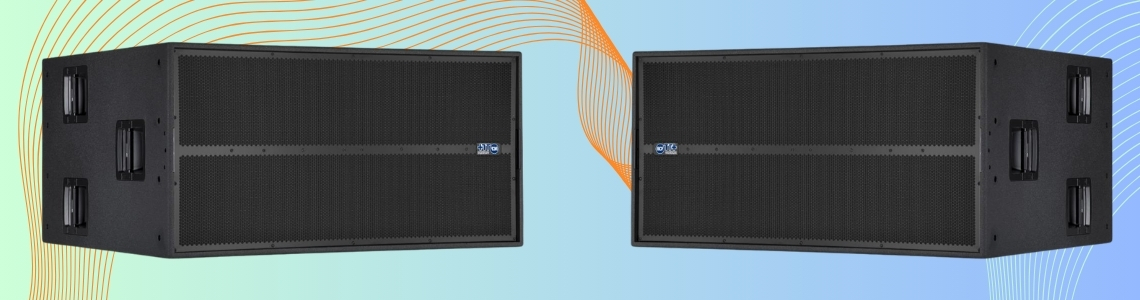

RCF TTS 56-A

RCF TTS 56-A on rent in Delhi, Greater Noida, Gurgaon | Sound System on rent for Events | Event sound on Hire in Noida

Features

• 2 x 3400 W digital amplifiers
•  2 x 21" high-power neodymium woofers
•  96 kHz, 32-bit DSP processing
•  Remote monitoring and control
•  Time delay alignment
•  Cardioid preset for groups
•  Tour-grade cabinet
• RDNet is on board
•  Maximum output per size on market

SPECIFICATIONS

ACOUSTICAL SPECIFICATIONS

• Max SPL: 145 dB
• Woofer: 2 x 21" neo, 4.5" voice coil

INPUT/OUTPUT SECTION

• Input connectors: XLR, Ethercon
• Output connectors: XLR, Ethercon
• Input sensitivity: -2 dBu / +10 dBu

PROCESSOR SECTION

• Protections: thermal, excurs., rms
• Limiter: soft limiter
• Controls: DSP controlled

AMPLIFIER SPECIFICATIONS

• Total power: 6800 W
• Low frequencies: 2 x 3400 W
• Cooling: convection/forced
• Connections: powercon

CABINET

• Cabinet Material: baltic birch plywood
• Hardware: 2 x steel bar for fork-lift transportation, 4 x 100 mm wheels
• Handles: 6 side

PHYSICAL SPECIFICATIONS

• Height: 590/23.2 mm/inch
• Width: 1170/46.0 mm/inch
• Depth: 988/38.9 mm/inch
• Net Weight: 115/235.5 kg/lbs
